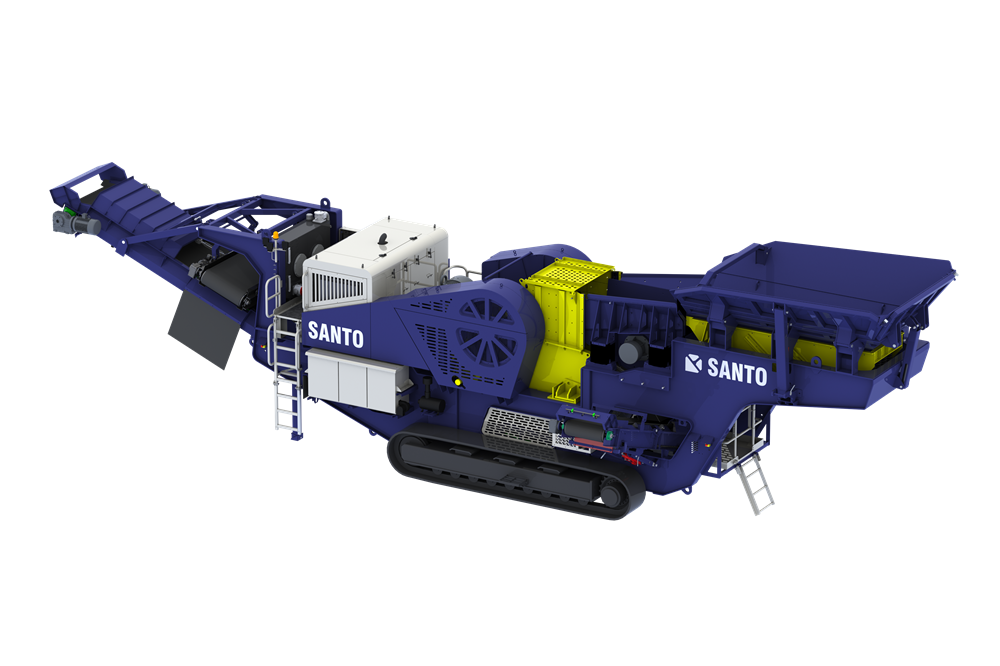

Tracked Type Mobile Jaw Crusher Plant
Product introduction
Product introduction:

The Tracked mobile jaw crusher plant of SANTO can be widely used in mining, tailings treatment, infrastructure construction, solid waste treatment fields.

A wide range of models are available, with a production capacity of up to 700 tons/hour. Large feed and high production capacity. Adapts to all types of primary crushing processes.


product overview

1. High-quality moving jaw assembly

The moving jaw assembly adopts heavy-duty eccentric shaft and integral bearing housing, labyrinth seal and centralized lubrication system, which has high impact resistance and strong stability.

2. Unique frame

Modular structure, avoid stress concentration when the equipment is subjected to shock load, the frame is reliable and durable.

3. Intelligent continuous feeding

The feeding volume is controlled by frequency conversion, and the feeding speed can be adjusted according to the working situation.

4. Super large hopper

The side and tail of the hopper can be hydraulically folded, and the volume can be increased by 50% after expansion

5. Active full protection system

Intelligent control, one-key start, simple and convenient operation;

6. It can quickly transfer the operation

It adopts intelligent, integrated and modular configuration, and has strong on-site passing ability, which can quickly adapt to a variety of complex construction environments such as mountains and wetlands.


technical parameter

Tracked Type Mobile Jaw Crusher Plant

Model

ST-110J

Vibrating Feeder

Model

4050x1000

Power (KW)

2x3.7

Jaw Crusher

Model

C116

Max. Feed size(mm)

640

Power (KW)

132

Whole Machine

Capacity (TPH)

170-520

Power (KW)

158

Transfer size (mm)

15900x3600x3850

Weight (T)

50
